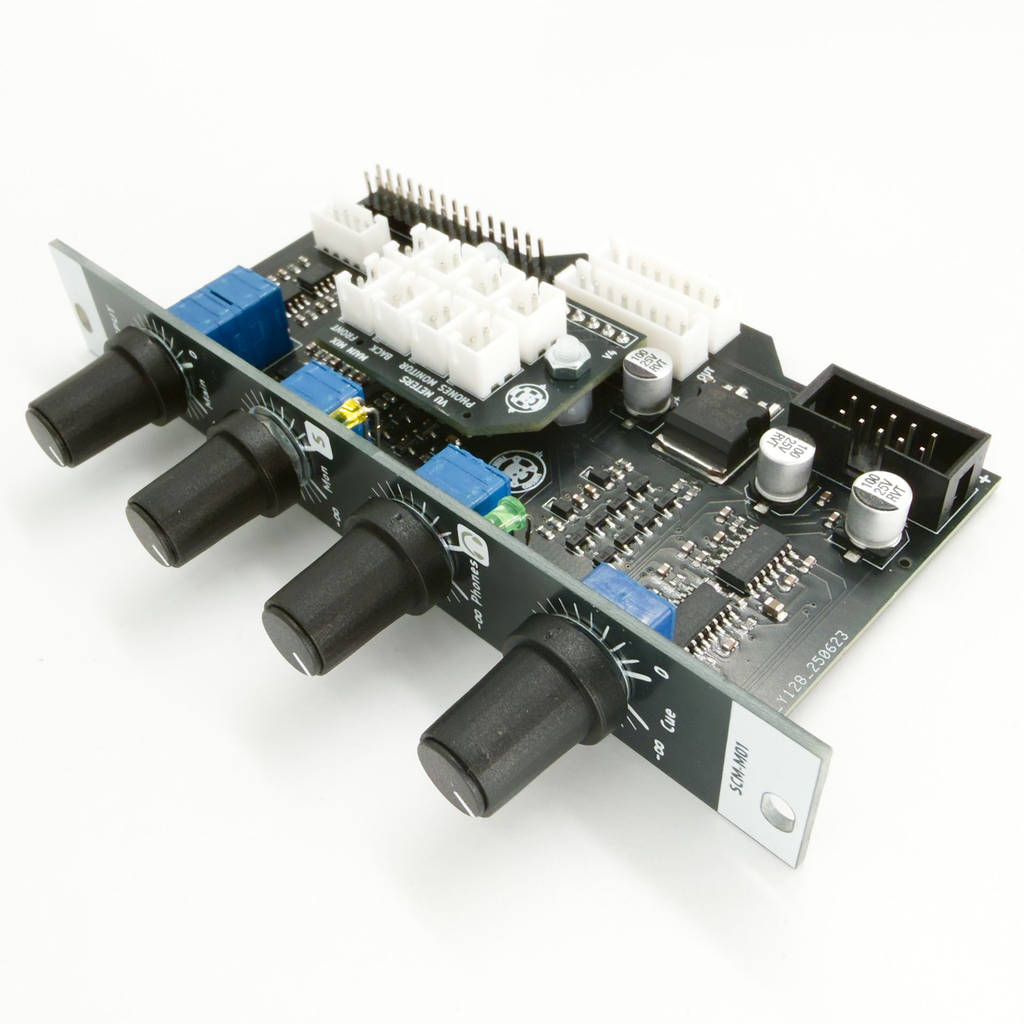

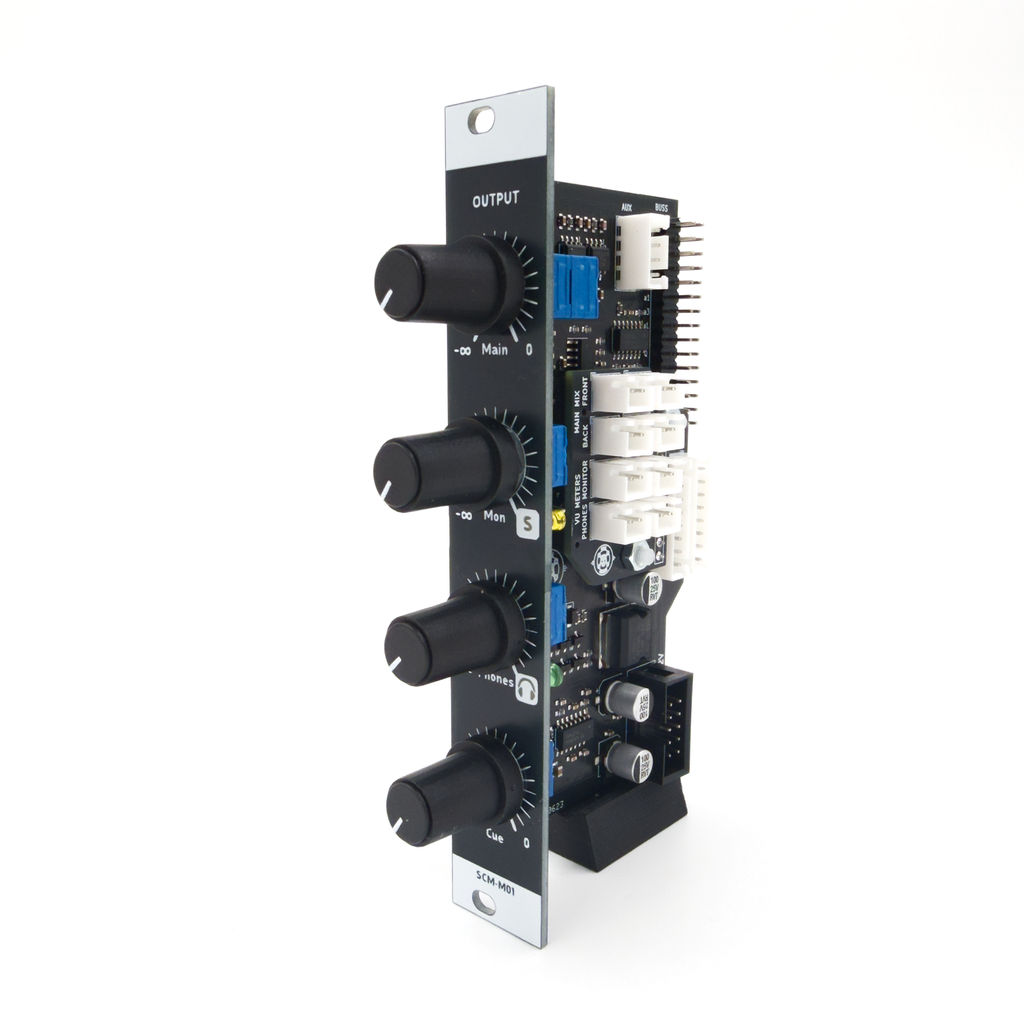

The main mixing module is the core module of your mixer. It’s where the magic of adding all signals together happens. The SCM-M01 is build with expandability and performance in mind. The summing engine is ready for quadraphonic use as well as standard stereo usage and all features are implemented for stage or studio.
Next to the main mix output, a monitor output is provided which uses a stereo mix down from the quadraphonic main out. When using the Solo mode, the monitor output will reflect that by outputting the solo’d channel, or channels, while the main output will remain unaffected. The solo is build to be free of clicks and plops when activating or deactivating.
The phones level can be used to set the level of the headphone outputs, those are a stereo mixdown of the quad main outputs as well. A separate cue level is implemented to protect your ears when PFL (Pre Fader Listening) – also called CUE – is active.

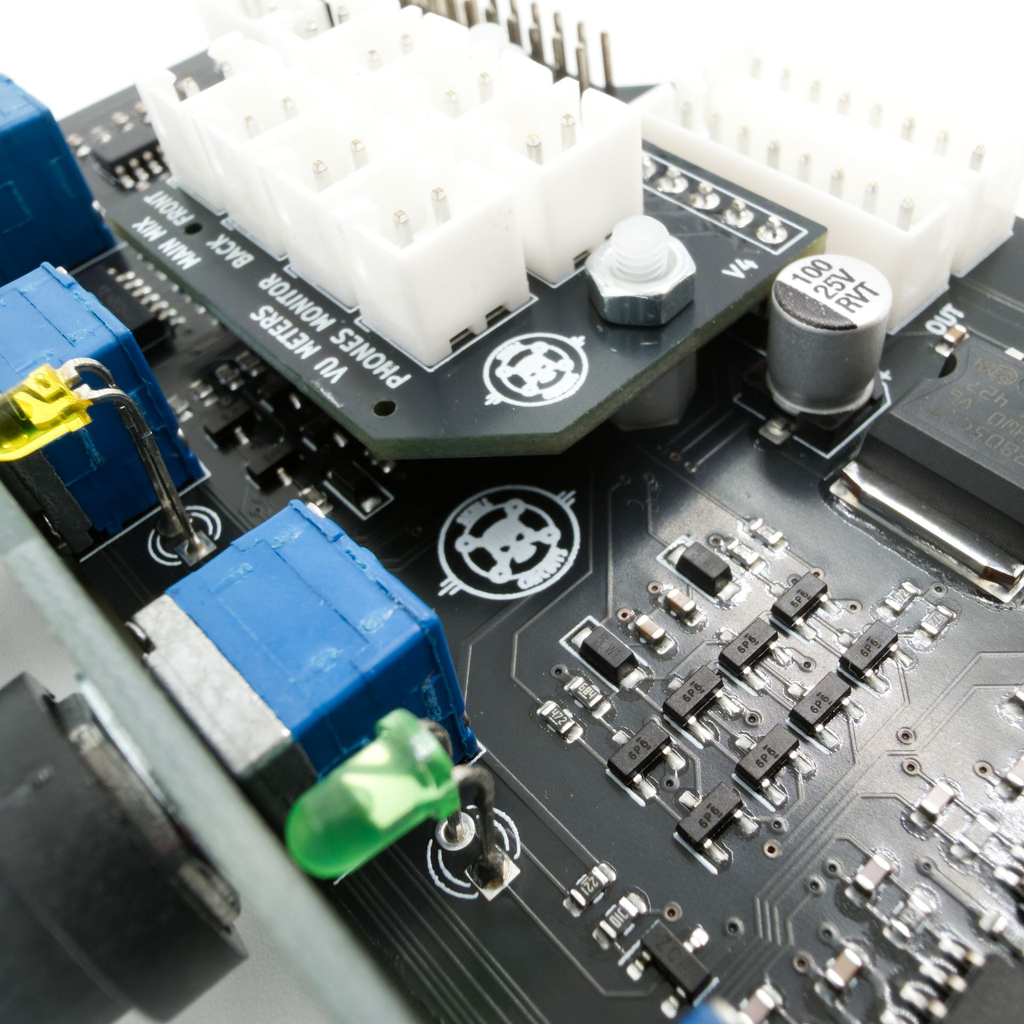

Since the SCM-M01 is the core of your mixer it offers a plethora of connection options on the back where you can connect output modules, aux modules, VU meters and off course, the main mix bus.
Width : 4HP
Depth : 63mm
+12V current draw : 68mA
-12V current draw : 60mA
